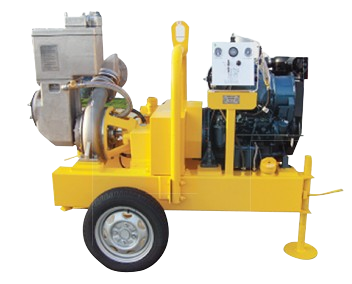

Engine: HA394 (Kirloskar) Air cooled, 1800 RPM, 41 HP Power, Anti clockwise Rotation

Pump Casing: C.I/ S.S 304, Stuffing Box: S.S 202/S.S 304, Impeller: C.I/S.S 304, Bronze Shaft: S.S 304/S.S 316, Priming tank: M.S/S.S 304, Sealing: Burmann type/ John Crane
Bearing: Double rows angular contact, Vacuum pump: Oil lubricated 60 cfm

Engine: HA394 (Kirloskar) Air cooled, 1800 RPM, 41 HP Power, Anti clockwise Rotation

Pump Casing: C.I/ S.S 304, Wear Plate: Bronze/S.S 304, Impeller: Bronze/ S.S 304, Shaft: S.S 304/S.S 316, Priming tank: Aluminium, Sealing: Gland packed Bearing: Tapper roller bearing, Vacuum pump: Oil lubricated 60 cfm
